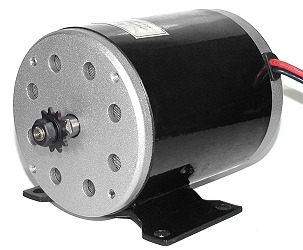

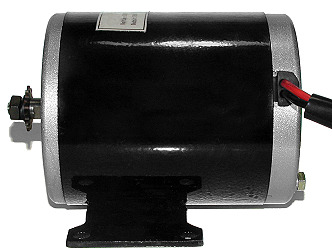

36 Volt 500 Watt 2500 RPM Electric Scooter Motor
- 36VDC 500W 2500 RPM electric scooter motor.
- Powerful four brush permanent magnet design with 100% ball bearing construction.
- Includes 11 tooth sprocket for #25 chain.
- 8.5mm x 10mm sprocket mounting area.
-
Different size sprockets are available for this motor.
- 18" long power leads.
- Shaft rotation reversible by reversing power leads.
- Mounting bracket measures 4-3/4" x 2-7/8" and has 4 holes that are spaced 4" x 2-1/4" apart.
- Dimensions: 4-1/4" outside diameter x 5-1/4" long excluding shaft, 6-1/4" long including shaft.
- Made by Unite®.
- Weight 9.2 lbs.
- Cross references motor case number: MY1020
Motor Dimensions: PDF
