- Toggle Switch to Controller wire length 48"
- Throttle to Controller wire length 48"
- Battery Pack to Controller wire length 24"
- Charger Port to Controller wire length 24"
- Motor to Controller wire length 18"
The toggle switch has 48" of wire so it can be mounted on the front of the go kart if wanted. This wire length can be shortened on request.
The chain with master link in this kit is oversized and will need to be shortened to the correct length after the motor is installed.
This is a modification parts kit and requires custom installation of all parts.
This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
|

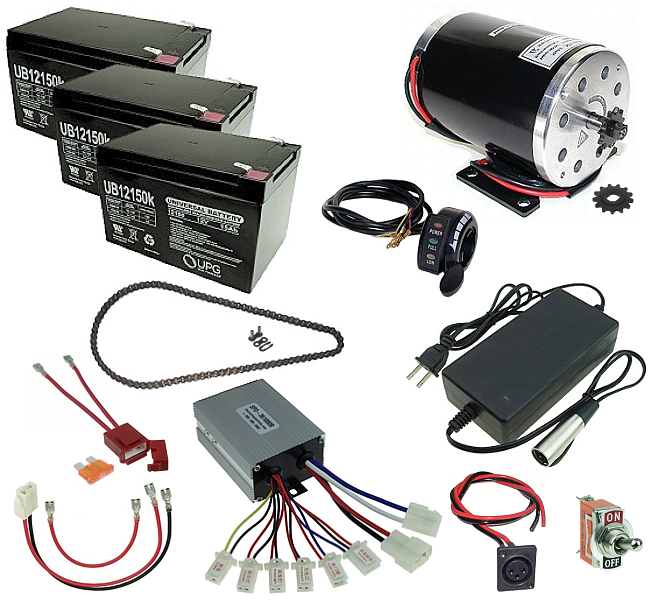

Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
Three Quantity 12 Volt 15 Ah Batteries with 12 Month Warranty
80 Links of Heavy Duty #25 Chain with Master Link
36 Volt 1.6 Amp Automatic Battery Charger with 3-Pin XLR Plug
3 Pin Black Nylon XLR Charger Port
ATO Fuse Holder with 14 Gauge Red Wire and 1/4" Push-On Connectors
40 Amp ATO Blade Fuse
36 Volt 1000 Watt Electric Scooter Motor with Mounting Bracket
36 Volt 1000 Watt Speed Controller
13 Tooth 10mm Double D-Bore Sprocket for #25 Chain
On-Off Toggle Switch, SPST 2-Terminal
Thumb Throttle with 36 Volt Power Meter
Battery Wiring Harness for 36 Volt Electric Scooters
|
$35.00,$134.85,$14.40,$32.95,$3.95,$2.95,$0.95,$129.95,$49.95,$9.95,$2.95,$19.95,$12.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn Stock.
