- Throttle to controller wire length 60"
- Battery pack to controller wire length 18"
- Motor to controller wire length 18"
- Charger port wire length 20"
The power switch is on the throttle which makes turning the power on and off much easier than if using the original battery box mounted power switch. The throttle has battery indicator lights which light up when the power is on.
The chain with master link in this kit is oversized and will need to be shortened to the correct length after the motor is installed.
This is a custom modification parts kit and requires custom installation of all parts in the kit and modifications to the scooter to install.

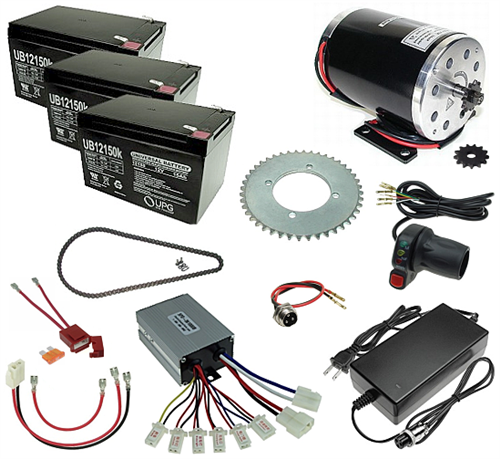

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
Three Quantity 12 Volt 15 Ah Batteries with 12 Month Warranty
84 Links Of 8mm Chain with Master Link
36 Volt 1.6 Amp Automatic Battery Charger with 3-Port Inline Plug
3 Pin Inline Charger Port
ATO Fuse Holder with 14 Gauge Red Wire and 1/4" Push-On Connectors
40 Amp ATO Blade Fuse
36 Volt 1000 Watt Electric Scooter Motor with Mounting Bracket
36 Volt 1000 Watt Speed Controller
13 Tooth 10mm Double D-Bore Sprocket for 8mm Chain
44 Tooth Sprocket with F4 Mounting Pattern for T8F (8mm) Chain
Half Length Twist Throttle with 36 Volt Power Meter and Maintained On/Off Switch
|
$35.00,$134.85,$16.80,$29.95,$3.95,$2.95,$0.95,$129.95,$49.95,$9.95,$19.95,$21.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn Stock.
