Item #: KIT-E300-1000-20
Availability: In Stock
Price: $550.20

    Quantity:
    • Throttle to controller wire length 60"
    • Battery pack to controller wire length 18"
    • Motor to controller wire length 18"
    • Charger port wire length 20"

    The motor has an 11 tooth sprocket factory installed on it. An additional 13 tooth motor sprocket is included with this kit to increase the gear ratio and top speed.

    Two rear wheel sprockets are included with this kit. One wheel sprocket has 36 teeth and the other has 44 teeth.

    The power switch is on the throttle which makes turning the power on and off much easier than if using the original battery box mounted power switch. The throttle has battery indicator lights which light up when the power is on.

    The chain with master link in this kit is oversized and will need to be shortened to the correct length after the motor is installed.

    This is a custom modification parts kit and requires custom installation of all parts in the kit.

    This kit contains the following parts and labor (click below for details):

    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock

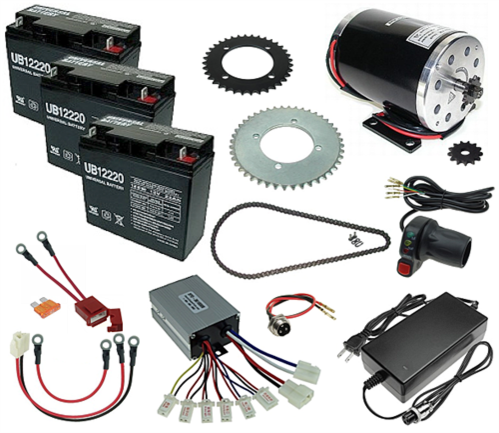

  • Three Quantity 12 Volt 22Ah Batteries with 12 Month Warranty
  • 84 Links Of 8mm Chain with Master Link
  • 36 Volt 3 Amp Automatic Battery Charger with 3-Port Inline Plug
  • 3 Pin Round Battery Charger Port with 20" Wires
  • 36 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse, 5mm Ring Terminals
  • 36 Volt 1000 Watt Electric Scooter Motor with Mounting Bracket
  • 36 Volt 1000 Watt Speed Controller
  • 13 Tooth 10mm Double D-Bore Sprocket for 8mm Chain
  • 38 Tooth 4-Hole Freewheel Sprocket for 8mm Chain
  • 44 Tooth Sprocket with F4 Mounting Pattern for T8F (8mm) Chain
  • Half Length Twist Throttle with 36 Volt Power Meter and Maintained On/Off Switch
  • "When you need Electric Scooter Parts, go to: ElectricScooterParts.com"
