This kit requires modifications to install. The battery pack, controller, motor, and reverse switch need to be custom mounted. The axle sprocket and throttle will fit on the Dirt Quad without modifications.
Geared for a top speed of around 15 MPH.
With this kit the power switch is no longer wired in between the battery pack and controller, and there is an adapter (ADAPTER-CNX2.8M2-6.3F) that goes from the controller to the power switch
This kit is available without a reverse switch as item # KIT-194.

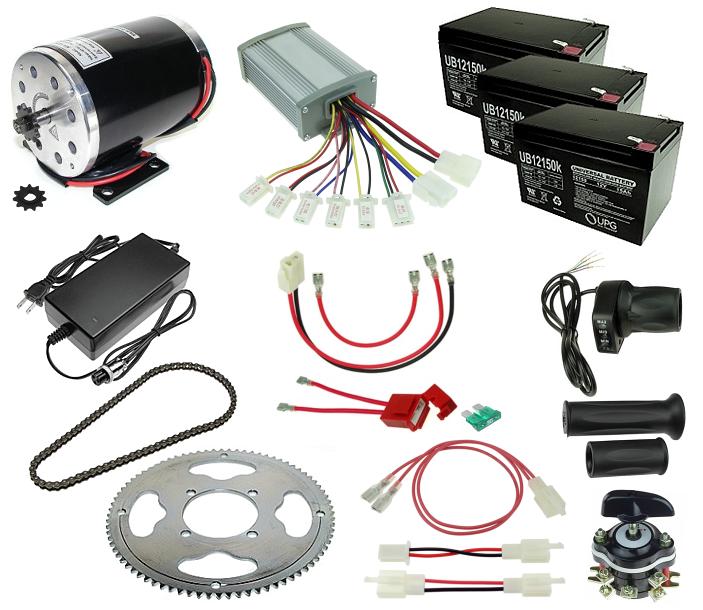

This kit contains the following parts and labor (click below for details):
This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
Adapter with 18" Wires for Power Switch with 6.3mm Terminals to Controller
Three Quantity 12 Volt 15 Ah Batteries with 12 Month Warranty
150 Links Of Heavy Duty #25 Chain with Master Link
36 Volt 1.6 Amp Automatic Battery Charger with 3-Port Inline Plug
30 Amp ATO Blade Fuse
36 Volt 1000 Watt Electric Scooter Motor with Mounting Bracket
Adapter To Make Razor Brake Lever Work with Aftermarket Speed Controller
Adapter To Make Razor Charger Port Work with Aftermarket Speed Controller
36 Volt 1000 Watt Speed Controller
11 Tooth 10mm Double D-Bore Sprocket for #25 Chain
80 Tooth Rear Sprocket for #25 Chain
Heavy Duty Motor Reversing Switch
Half Length Twist Throttle with 36 Volt Power Meter
Handlebar Grip Set for Electric Scooters and Bikes with Half-Length Twist Throttles
Battery Wiring Harness with Fuse Holder for 36 Volt Electric Scooters
|
$35.00,$4.95,$134.85,$27.00,$29.95,$0.95,$129.95,$5.95,$4.95,$49.95,$9.95,$19.95,$14.95,$19.95,$4.95,$13.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn Stock.
Notify Me When This Kit is Back in Stock
