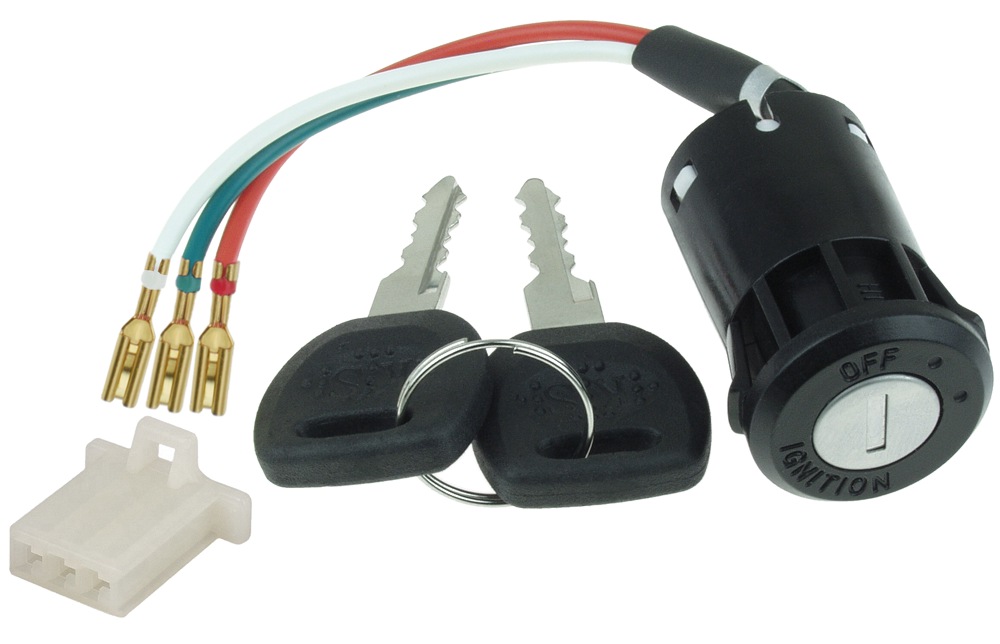

3 Wire 3 Position Key Switch with 2 Keys
- The terminals are not inserted into the connector so they can be inserted in any position during installation.
| Wire
Color |
Off
Position 1 |
On
Position 2 |
On
Position 3 |
| Red + White |
Off |
Off |
On |
| Red + Green |
Off |
On |
On |
| White + Green |
Off |
On |
On |
