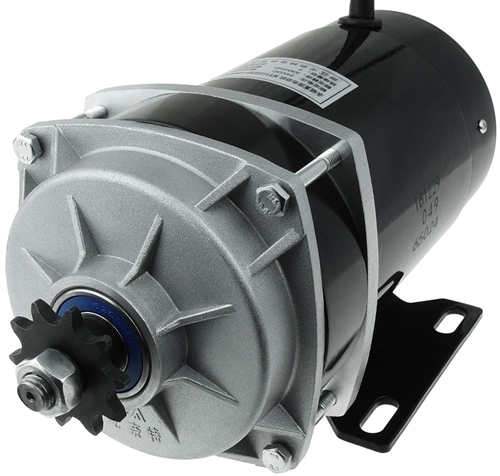

24 Volt 650 Watt Planetary Gear Motor
- 24 Volts DC.
- 650 Watts.
- 34.7 Amps.
- Output shaft speed 530 RPM.
- Shaft diameter where
sprocket seats into is 12mm x 17mm with a dual-d bore.
- Includes 10
tooth sprocket for #41 and #420 chain (both of these chain sizes
work with this motor's sprocket).
- Powerful four brush permanent magnet design with 100% ball bearing
construction.
- 18" long 12 gauge
power lead wires.
- Natively runs in the clockwise direction.
- Shaft rotation reversible by reversing power leads.
- Mounting bracket measures 5-1/2" x
4-1/2" with 4 mounting holes.
- Mounting holes are spaced 4" center to
center across by
2-1/2" center to center across.
- Weight 17 lbs.
- Made by Unite®.
