Item #: KIT-24650-10
Availability: In Stock
Price: $769.35
    Reverse Switch Type:

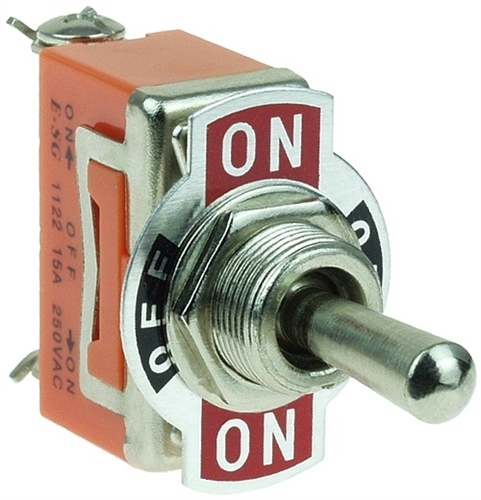

    • Panel Mount Toggle

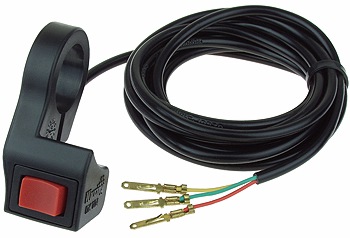

    • Handlebar Mount Rocker with 78" Cable

    #420 Chain with Master Link:

    Battery Pack to Power Relay Wires:

    Charger Port to Battery Pack Wires:

    Key Switch to Relay Wires:

    Motor to Reverse Relay Wires:

    Power Relay to Controller Wires:

    Reverse Relay to Controller Wires:

    Reverse Switch to Reverse Contactor Wires:

    Throttle to Controller Wires:


    Update price
    Quantity:
    Wire Routing Chart

    We install matching connectors on every part in this kit and label them so all you have to do is plug everything together.

    If the handlebar switch option is selected then the handlebar switch will replace the toggle switch in the kit.

    The motor has a 10-tooth sprocket for #420 chain. #420 chain with master link options are available in the Choose Your Options area.

    The shipping weight of this kit is 90 pounds.

    Need more sprockets or chain? Click below to view our full selection of sprockets and chains.

    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock

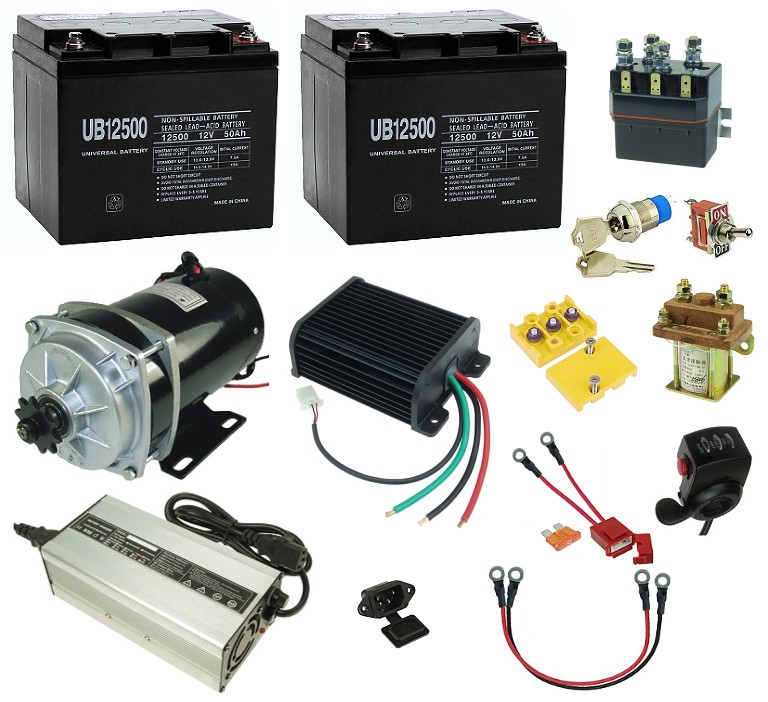

  • 24 Volt 5 Amp Battery Charger with 3-Port House Plug CHR-E24V5AHS
  • 3 Pin House Port with Dust Cover
  • 3-Terminal Junction Box with Cover
  • 24 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse, with 6.3mm Ring Terminals
  • 24 Volt 650 Watt Planetary Gear Motor
  • 24 Volt 150 Amp Power Contactor
  • 24 Volt 150 Amp Motor Reversing Contactor
  • 24-36V 1000W Electric Cargo Tricycle and Truck Speed Controller
  • 3 Position Key Switch with 2 Keys
  • On-Off-On Toggle Switch, SPDT 3-Terminal
  • Thumb Throttle with 24 Volt Power Meter and Latching On-Off Switch
  • Two Quantity 12 Volt 50 Ah/Amp hour Electric Scooter Scooter Batteries with Bolt Down Posts
