Warning: The go-kart needs to be at a complete stop before switching from forward to reverse or from reverse to forward. If the direction is switched while the go-kart is moving then the speed controller will stop working. There is no warranty on the speed controller so if this happens then it will need to be replaced at your expense. For this reason, we do not recommend this kit for children to use. For children, we recommend our
24 Volt 500 Watt kit without reverse, our
36 Volt 1000 Watt kit with reverse, or our
48 Volt 1000 Watt kit with reverse. Our 1000 Watt kits with reverse have a heavy duty external reverse relay which stops the motor between forward and reverse to prevent damage to the controller if the direction is changed when the go-kart is in motion.
- Toggle Switches to Controller wire length 48"
- Throttle to Controller wire length 48"
- Battery Pack to Controller wire length 24"
- Charger Port to Controller wire length 24"
- Motor to Controller wire length 18"
The original power switch and charger port are reused with this kit.The toggle switch (used for forward/reverse) has 48" of wire so it can be mounted on the front of the go kart if wanted. This wire length can be shortened on request.
The chain with master link in this kit is oversized and will need to be shortened to the correct length after the motor is installed.
This is a modification parts kit and requires custom installation of all parts.
This kit contains the following parts and labor (click below for details):
This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
|

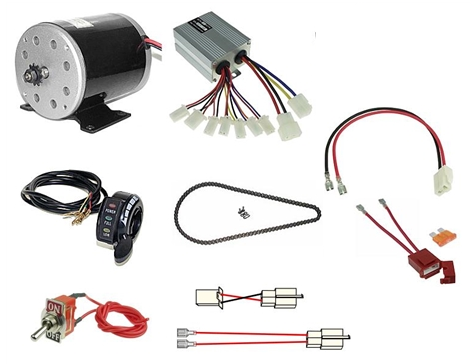

Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
100 Links of Heavy Duty #25 Chain with Master Link
Charger Port Polarity Adapter
ATO Fuse Holder with 14 Gauge Red Wire and 1/4" Push-On Connectors
40 Amp ATO Blade Fuse
Battery Wiring Harness for 24 Volt Electric Scooters
24 Volt 500 Watt 2500 RPM Electric Scooter Motor with Mounting Bracket
24 Volt 500 Watt Speed Controller with Reverse
On-Off Toggle Switch, SPST 2-Terminal
Rocker Switch to Controller Adapter
Thumb Throttle with 24 Volt Power Meter
|
$35.00,$18.00,$4.95,$2.95,$0.95,$9.95,$89.95,$59.95,$2.95,$4.95,$19.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn Stock.
Notify Me When This Kit is Back in Stock
