- Throttle to Controller wire length 64"
- Battery Pack to Controller wire length 24"
- Charger Ports to Batteries wire length 24"
- Motor to Controller wire length 18"
This kit requires two battery chargers, one for each battery. Battery chargers are not included with this kit. Click here for this same kit with battery chargers included.
The red push button switch on the throttle is the on/off power switch.
The chain with master link in this kit is oversized and will need to be shortened to the correct length after the motor is installed.
This is a modification parts kit and requires custom installation of all parts.

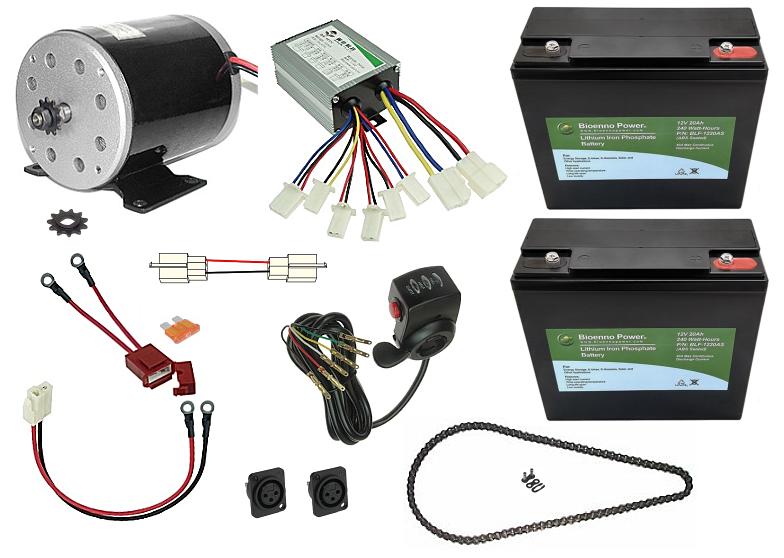

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
100 Links of Heavy Duty #25 Chain with Master Link
3 Pin Black Nylon XLR Charger Port
40 Amp ATO Blade Fuse
24 Volt Battery Pack Wiring Harness with Fuse Holder, 5mm Ring Terminals
24 Volt 500 Watt 2500 RPM Electric Scooter Motor with Mounting Bracket
Adapter To Make Razor Brake Lever Work with Aftermarket Speed Controller
24 Volt 500 Watt Speed Controller
13 Tooth 10mm Double D-Bore Sprocket for #25 Chain
Thumb Throttle with 24 Volt Power Meter and Latching On-Off Switch
Two Quantity 12 Volt 20Ah LiFePO4 Electric Scooter or Bike Batteries
|
$35.00,$18.00,$3.95,$0.95,$14.95,$89.95,$5.95,$39.95,$9.95,$21.95,$419.90
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn Stock.
