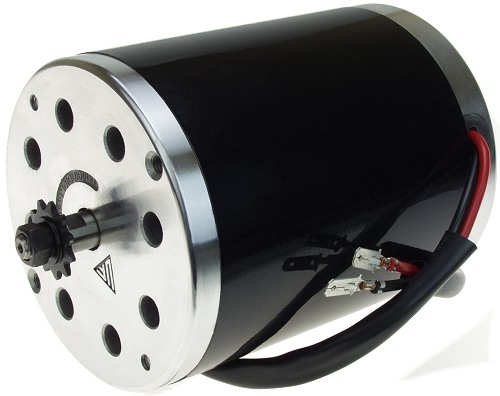

24 Volt 500 Watt 2500 RPM Electric Scooter Motor
- 24V 500W 2500 RPM electric scooter motor.
- Powerful four brush permanent magnet design with 100% ball bearing construction.
- Includes 11 tooth sprocket for #25 chain. 8.5mm x 10mm sprocket mounting area.
- Different size sprockets are available for this motor
- 18" long power leads.
- Shaft rotation reversible by reversing power leads.
- Dimensions: 4-1/4" wide x 5-1/2" long excluding shaft, 6-1/2" long including shaft.
- Shaft is 1" long and sprocket is spaced 5/8" away from front of motor.
- Front and rear ends of motor have threaded mounting holes.
- Weight 9 lbs.
- Made by Unite®.
- Cross references motor case number: MY1020
Motor Dimensions: PDF
