This is a special listing for a part with cosmetic damage: There are some scratches in the paint on the motor's body and mounting base. This is cosmetic damage only and does not affect the operation of the motor. These are new motors and a chain has never been installed on their sprockets. Our regular price for this motor is $159.95 and we are selling these cosmetically damaged ones for $119.95. Two of these cosmetically damaged motors are available at the time that this listing was made.

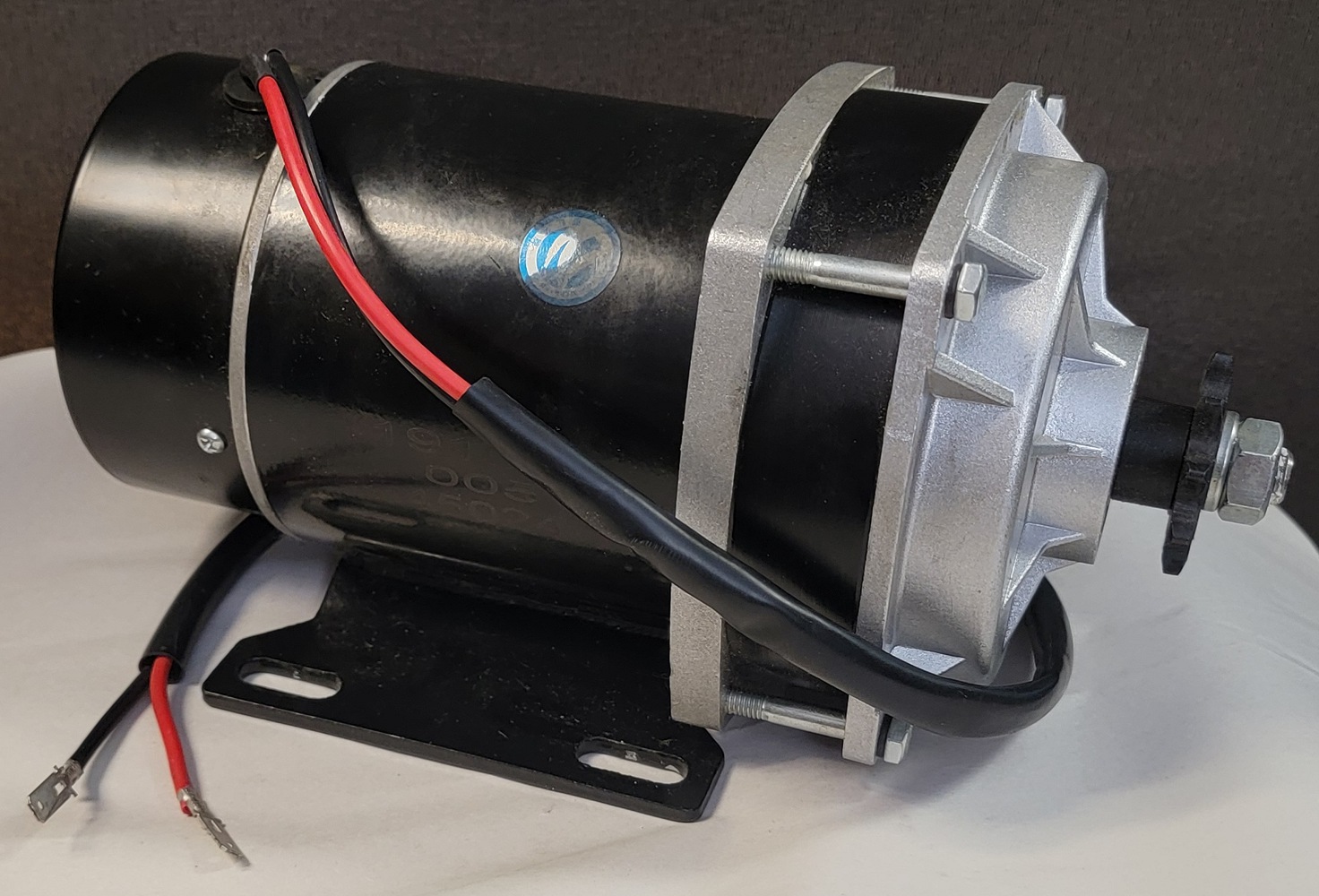

24 Volt 450 Watt Planetary Gear Motor with Cooling Fan (With Scratches)
- 24V 450W electric bicycle, tricycle, and go-kart motor with built-in planetary gear reduction transmission and cooling fan.
- Output shaft speed 560 RPM. Shaft diameter where sprocket seats into is 12mm x 17mm with a dual D-bore.
- Includes 10 tooth sprocket for #41 and #420 chain (both of these chain sizes work with this motor's sprocket).
- Different size sprockets are available for this motor.
- Powerful four-brush permanent magnet design with 100% ball bearing construction.
- 12 gauge power leads.
- Shaft rotation reversible by reversing power leads.

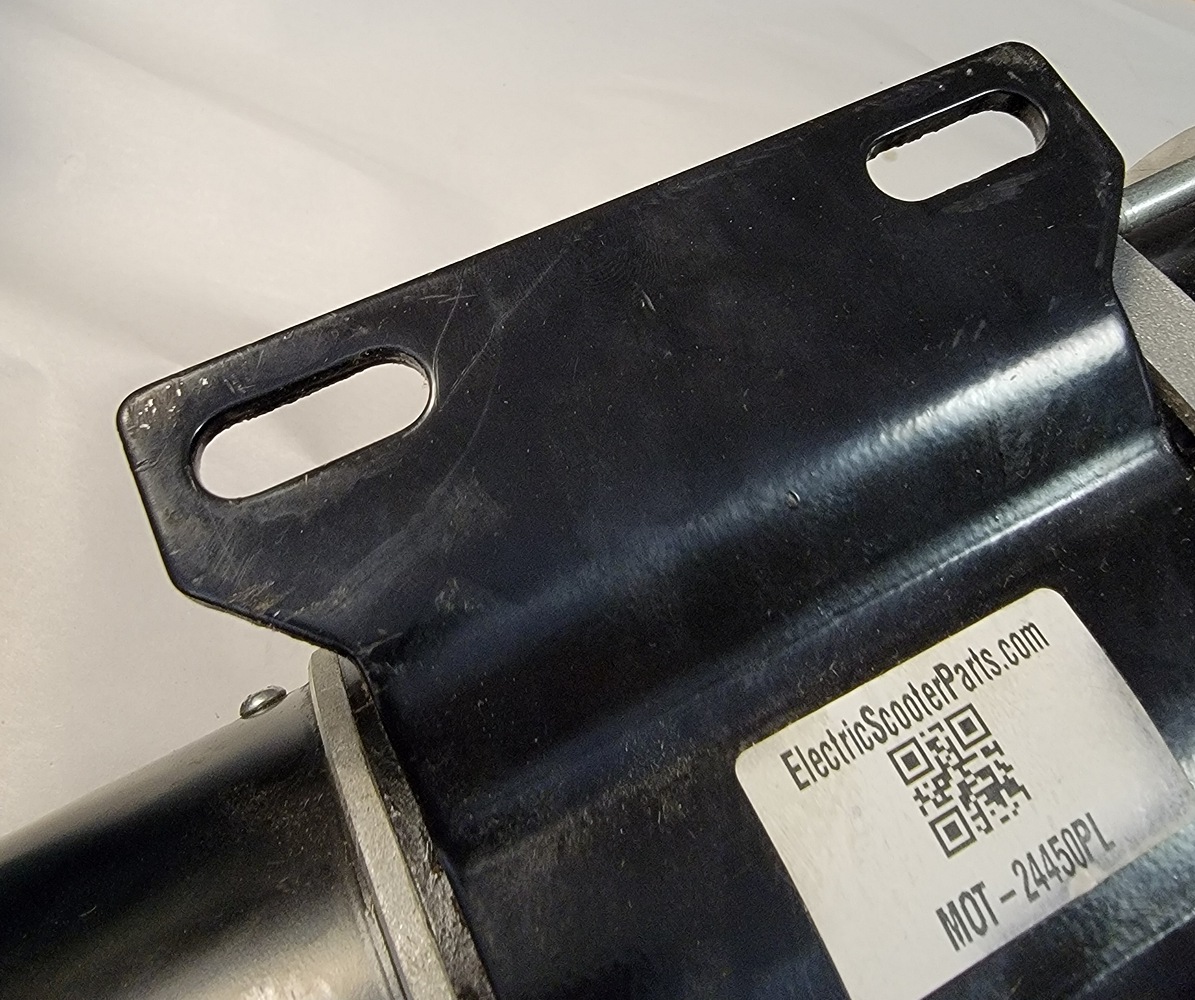

- Mounting bracket measures 5.59" (142mm) x 4.53" (115mm) with 4 mounting holes.
- Mounting holes are spaced 4.80" (122mm) center to center across by 3.15" (80mm) center to center across.
- Weight 17 lbs.
- Made by Unite®.
Motor Dimensions: PDF
