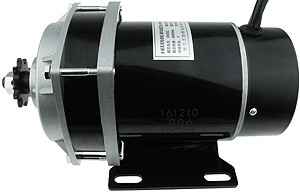

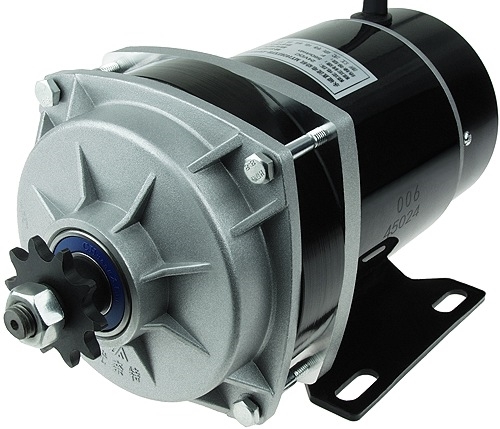

24 Volt 450 Watt Planetary Gear Motor with Cooling Fan
- 24V 450W electric bicycle, tricycle, and go-kart motor with built-in planetary gear reduction transmission and cooling fan.
- Output shaft speed 560 RPM. Shaft diameter where sprocket seats into is 12mm x 17mm with a dual D-bore.
- Includes 10 tooth sprocket for #41 and #420 chain (both of these chain sizes work with this motor's sprocket).
- Different size sprockets are available for this motor.
- Powerful four brush permanent magnet design with 100% ball bearing construction.
- 12 gauge power leads.
- Shaft rotation reversible by reversing power leads.
- Mounting bracket measures 5.59" (142mm) x 4.53" (115mm) with 4 mounting holes.
- Mounting holes are spaced 4.80" (122mm) center to center across by 3.15" (80mm) center to center across.
- Weight 17 lbs.
- Made by Unite®.
Motor Dimensions: PDF
