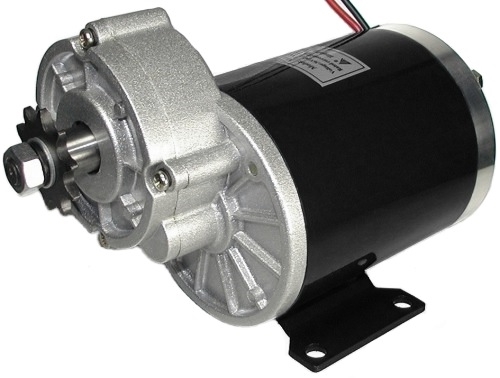

24 Volt 450 Watt Gear Motor
- 24 Volts DC.
- 450 Watts.
- 24 Amps.
- Output shaft speed 450 RPM.
- Includes
10 tooth sprocket for #41 and #420 chain (both of these chain sizes work
with this motor's sprocket).
- Powerful four brush permanent magnet
moor design with 100% ball bearing construction.
- Heat-treated hardened steel spur gear transmission.
- 24" long 12 AWG power leads.
- Shaft
rotation is reversible by reversing power leads.
- Mounting bracket measures 4-3/4" x
2-7/8" and has 4 holes that are spaced 4" x 2-1/4" apart.
- Motor dimensions:
4-1/4" outside diameter x 5-1/2" long excluding transmission and output shaft,
8-1/2" long including transmission and output shaft.
- Weight 11 lbs.
