This is a custom-made kit so please allow around 3-5 business days for the kit to be produced and shipped after the order is placed.
This is a custom-made kit with a custom-made axle sprocket so please allow around 5-10 business days for the kit to be produced and shipped after the order is placed.
- Wires between key switch and controller are 48 inches long.
- Two 12 Volt 15Ah batteries.
- The key switch is wired as the on-off power switch.
- When this kit is used with 12" (30cm) wheels the top speed is around 3 MPH, which is normal walking speed.
- The motor speed can be variably controlled from a full stop to top speed and everywhere in between with the included thumb throttle.
- The freewheel to axle adapter in this kit fits 1" axles, has a 1/4" keyway, and two set screws to hold it onto the axle.
- Freewheel to axle adapters for different size axles are available upon request.
- This kit has a freewheel that engages in the clockwise direction.

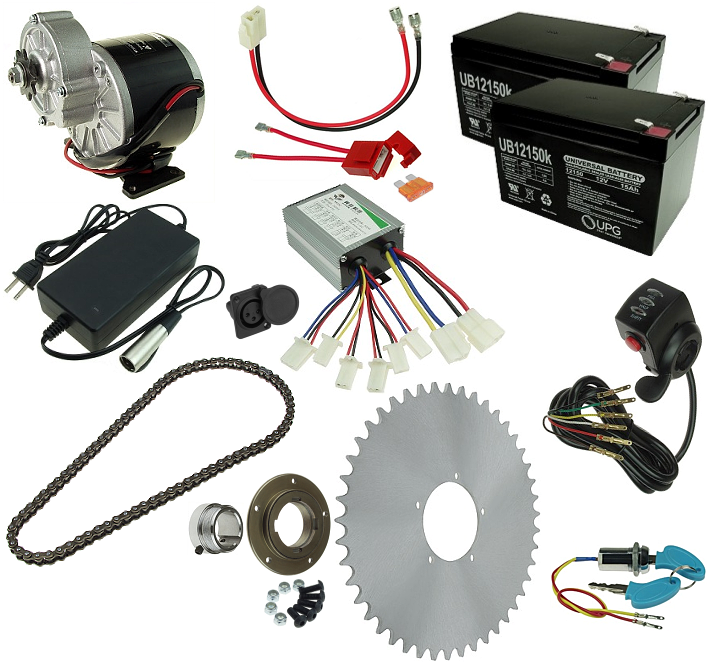

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
Out of Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
Two Quantity 12 Volt 15 Ah Batteries with 12 Month Warranty
24 Volt 1.6 Amp Automatic Battery Charger with 3-Pin XLR plug
3 Pin Black Nylon XLR Charger Port with Cover
30 Amp ATO Blade Fuse
5-Hole Bicycle Freewheel with 1.375" x 24 TPI Right Hand Threads
Freewheel to Axle Adapter with 1.375" x 24 TPI Right Hand Threads for 1" Axle
Handlebar Grip Set for Razor Electric Scooters, Bikes, ATVs, Go-Karts, and Other Ride-On Vehicles
Sprocket Mounting Bolts and Locknuts for 5-Hole Freewheels
24 Volt 350 Watt Electric Bicycle Gear Motor
24 Volt 500 Watt Speed Controller
44 Tooth 2-1/8" Bore 5-Hole Sprocket for 1/2" x 1/8" and 1/2" x 3/32" Bicycle Chain
2 Wire Key Switch with 2 Keys
Thumb Throttle with 24 Volt Power Meter and Latching On-Off Switch
100 Links of 1/2" x 1/8" (#410) Chain
Wiring Harness with Fuse Holder for 24 Volt Battery Pack
|
$35.00,$89.90,$27.95,$3.95,$0.95,$19.95,$24.95,$4.95,$2.95,$89.95,$39.95,$29.95,$11.95,$21.95,$14.00,$10.95
The total of the individual parts and labor in this kit is
