This is a custom-made kit so please allow around 3-5 business days for the kit to be produced and shipped after the order is placed.
This is a custom-made kit with a custom-made axle sprocket so please allow around 5-10 business days for the kit to be produced and shipped after the order is placed.
- Two 12 Volt 10Ah batteries.
- The red button on the twist throttle is wired as the on/off main power switch.
- When this kit is used with Wheeleez 30cm wheels the top speed is around 3 MPH, which is normal walking speed.
- The motor speed can be variably controlled from a full stop to top speed and everywhere in between with the included twist throttle.
- The 44 tooth sprocket is custom machined to fit onto the freewheel so please allow up to 5 business days for it to be made.
- The freewheel to axle adapter in this kit fits 1" axles and has a 1/4" keyway.
- Freewheel to axle adapters for different size axles are available upon request.
- This kit has a freewheel that engages in the clockwise direction.

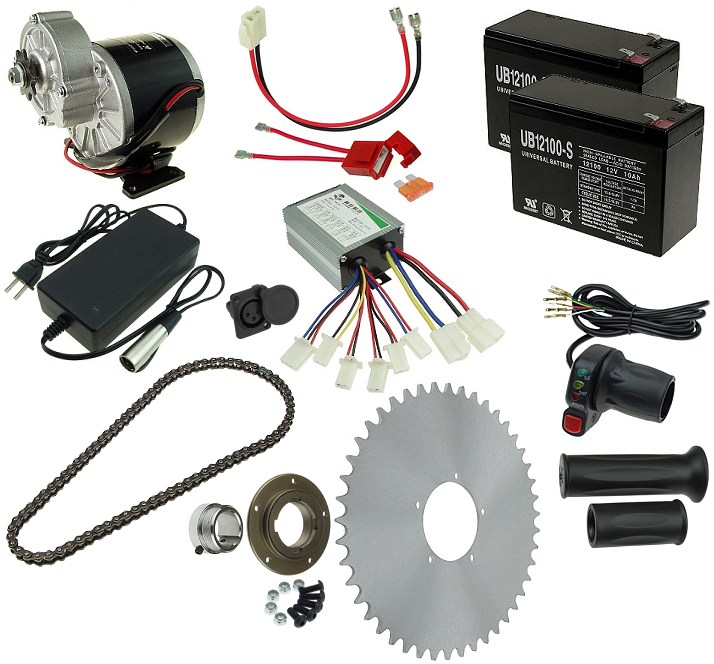

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
Out of Stock
In Stock
In Stock
In Stock
In Stock
Out of Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
Two Quantity 12 Volt 10 Ah Batteries with 12 Month Warranty
24 Volt 1.6 Amp Automatic Battery Charger with 3-Pin XLR plug
3 Pin Black Nylon XLR Charger Port with Cover
30 Amp ATO Blade Fuse
5-Hole Bicycle Freewheel with 1.375" x 24 TPI Right Hand Threads
Freewheel to Axle Adapter with 1.375" x 24 TPI Right Hand Threads for 1" Axle
Handlebar Grip Set for Razor Electric Scooters, Bikes, ATVs, Go-Karts, and Other Ride-On Vehicles
Sprocket Mounting Bolts and Locknuts for 5-Hole Freewheels
24 Volt 350 Watt Electric Bicycle Gear Motor
24 Volt 500 Watt Speed Controller
44 Tooth 2-1/8" Bore 5-Hole Sprocket for 1/2" x 1/8" and 1/2" x 3/32" Bicycle Chain
Half Length Twist Throttle with 24 Volt Power Meter and Maintained On/Off Switch
100 Links of 1/2" x 1/8" (#410) Chain
Wiring Harness with Fuse Holder for 24 Volt Battery Pack
|
$35.00,$71.90,$27.95,$3.95,$0.95,$19.95,$24.95,$4.95,$2.95,$89.95,$39.95,$29.95,$21.95,$14.00,$10.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockOut of StockIn StockIn StockIn StockIn StockOut of StockIn StockIn StockIn Stock.
