24 Volt 150-250 Watt Controller and Throttle with Power Switch Electric Scooter Kit

Item #: KIT-718
Availability: In Stock
Price: $64.95

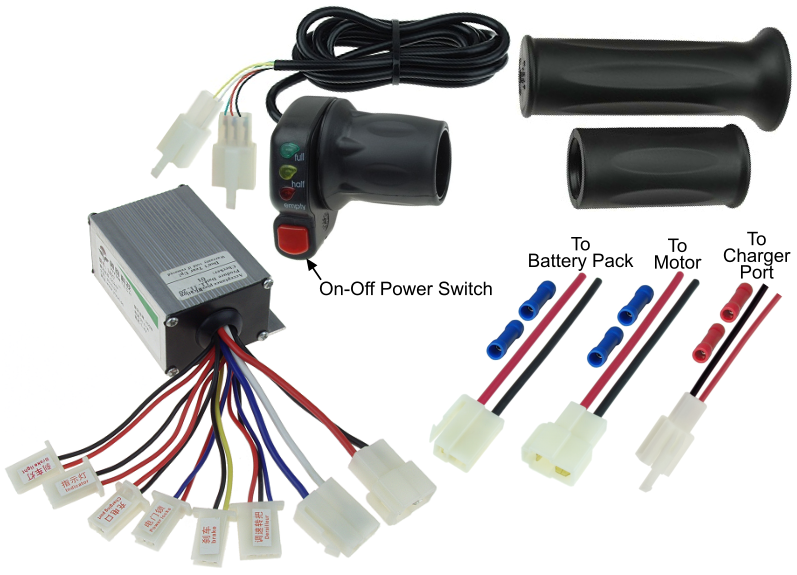

    24 Volt 150-250 Watt Controller and Throttle with Power Switch Electric Scooter Kit

    • The red push-button switch on the throttle is the on-off power switch.
    • This is a variable speed kit and the throttle controls the motor speed from 0-100% and everywhere in between.
    • The only connections that need to be made with this kit are the thick white and blue wires to the motor, the thick red and black wires to the battery pack, the charger port, and the throttle to the controller. All other connectors are optional and do not need to be connected for the controller to operate.
    • The throttle has two connectors that plug directly into the controller.
    • The connectors and adapters are labeled so they can be assembled without any guesswork.
    • The controller in this kit is 3" long x 2-3/8" wide x 1-1/2" high, not including its wires.
