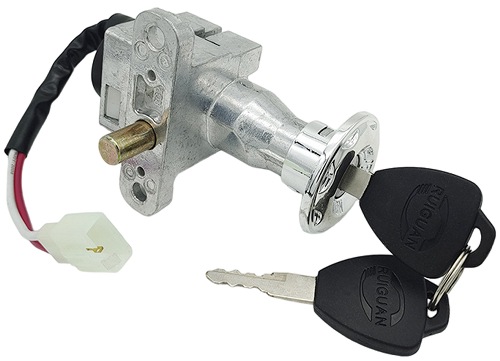

2 Wire 3 Position Key Switch with Handlebar Lock Pin
The New Item Number for This Part is SWT-23755
- Electric scooter, moped, and bike key switch with 2 wires and 2 keys.
- Three position locked-off-on key switch.
- Key removable in locked and off position.
- 59mm center-to-center distance between mounting holes.
- 10mm diameter round lock pin.
- Lock pin protrudes 10mm in unlocked position and 19mm in locked position.
- Seat latch release cable actuator.
- Front bezel is removable for through-hole installation.
- Wire Length: 6-1/2 Inches
- Wire Terminals: 2.8mm Male
Key Switch Dimensions: Click To View
